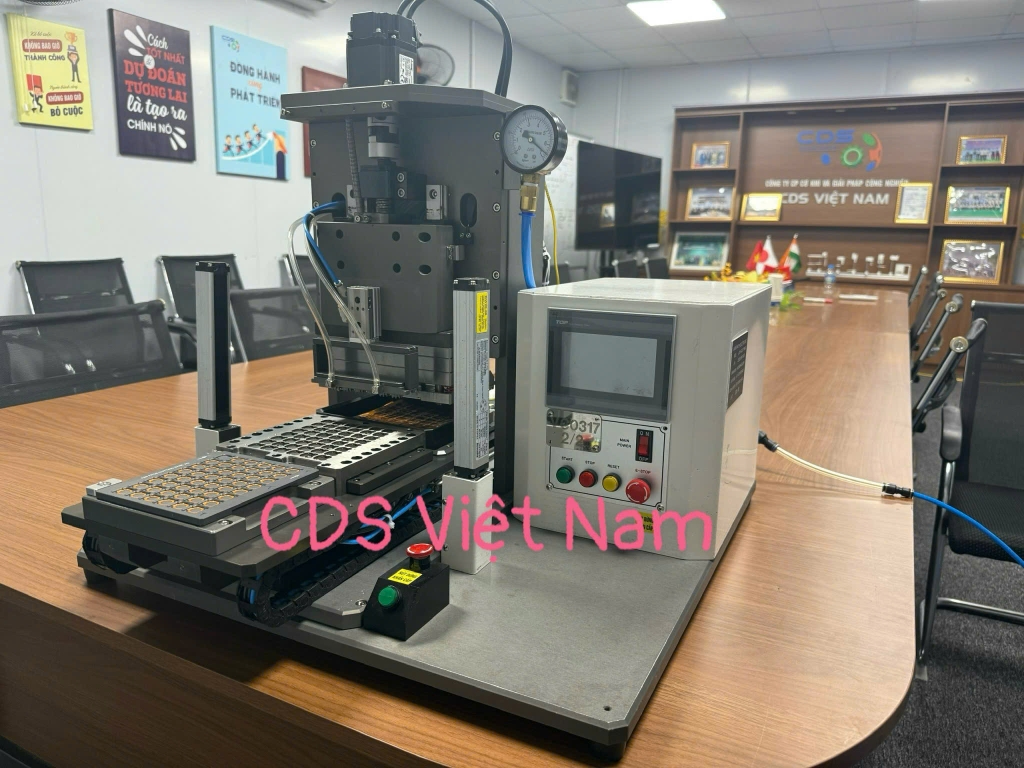

The semi-automatic PCB cutting machine is designed to separate small circuit boards from a large PCB panel with high precision and efficiency. With automatic waste collection and finished board handling, it ensures a clean workspace and smooth workflow for the next process.
Y-axis travel: 300mm
Z-axis travel: 100mm
Cutting jig size: 120 × 120mm
PCB thickness: 0.1mm – 1mm
Tolerance: from 0.01mm (depending on PCB array tolerance)
Automatic collection of waste and finished PCBs directly into the jig
Smart HMI interface for intuitive operation and easy setting
Customizable design with optional modules based on customer requirements
Efficiently separates small boards from large panels after production
Automatically removes excess material, keeping the workspace clean and organized
Places finished PCBs neatly into the jig, ready for the next stage
Reduces manual labor, increases productivity and accuracy
Minimizes the risk of PCB damage caused by manual handling
